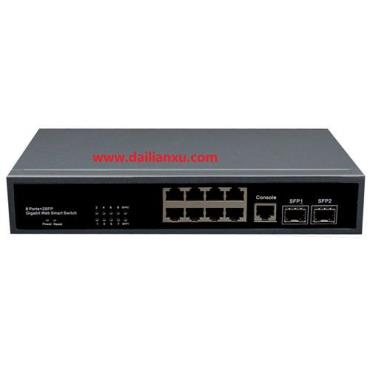

DLX-MPFS04G/08G series 10/100M/1000M Loop Self-healing Managed POE Ethernet Fiber Switch is included two 1000M fiber optical port and 4/8 POE 10/100M/1000M Ethernet ports. Adopts newest ring loop redundancy technique, Self-heal at very less time (<20ms). Support node type, ring loop, T, star etc. fiber network structure. Support Multiple management method (SNMP, Web browser, Telnet and RS232 control). Has multiple management functions, like 802.1Q VLAN,802.1p QoS, IGM static multicast, port Aggregation, port mirroring, port configuration, RSTP, MR-Ring, access control, remote control, port statistics, port network diagnosis etc. All ports support non-blocking and full line speed forwarding. Support Line detection and 32Kbps port’s bandwidth control to use the band resources properly. Support base-on port, 802.1p, IP TOS/DS and TCP/UDP ports’ Priority Mode etc. QoS control strategy.

It has the function of photoelectricity switchover between 4/8channels 10/100M/1000M Ethernet ports and 1000M optical port. Adopts single port full-power technology, and single port Support Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Support smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over-voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level(4KV) lightning, surge and ESD(8KV) protection.

APPLICATIONS

● High-definition IP video surveillance and power supply

● High Way& Road surveillance system, Capture system

● Video-surveillance system of large factories and mines systems

● IP Network Multi-function system

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance
