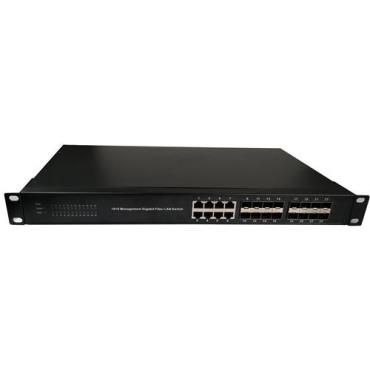

DLX-FA series Gigabit fiber aggregation media converter adopts Newest high-performance chip. Supports 8~24 1000M Fiber optical pots and 2~8 10/100/1000M Ethernet ports. Suit to different connection of Gigabit Network and flexible configuration network according to demand. Compatible with all Ethernet devices.

APPLICATIONS

● High-definition IP video surveillance and power supply

● High Way& Road surveillance system, Capture system

● Video-surveillance system of large factories and mines systems

● IP Network Multi-function system

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● 8~24 1000M Fiber optical pots and 2~8 10/100/1000M Ethernet ports optional

● Backplane bandwidth Max.56Gbps, All ports support non-blocking and full line speed forwarding

● Support connect to Metropolitan Area Network(MAN) directly

● Support 802.1x User authentication

● Powerful ACL, support L2-L7 data filter

● Ports-MAC-IP Multi-Binding

● ARP intrusion detection to Prevent ARP spoofing attacks by hackers

● Adopt Cluster Technology to stack devices, use centralized management of IP addresses, save address resources

● Support multiple network management, like: SNMP, Web browser, Telnet and RS232 Console

● Support Broad Drictor, HP Open View, Cisco Works 2000 etc. Network management protocol

● Support QoS and IP Multicast

● Support port Aggregation, port mirroring, port configuration

● Auto-negotiate to NIC/HUB and MDI/MDI-X

● Anti-lightning and ESD protection for all Ethernet ports, power ports.

● Immersion gold PCB board, Industry grade components

● Support IGM detection and BSTM broadcast storm-control setting

● Indicators for Power Supply, Ethernet etc.

● Support line speed switching of all ports and in 64~1536 frame length can reach line speed

● Wall mounted installation

● Transmission distance: 500M(multi-mode),20km,40km,60km,80KM optional(Single-mode)
