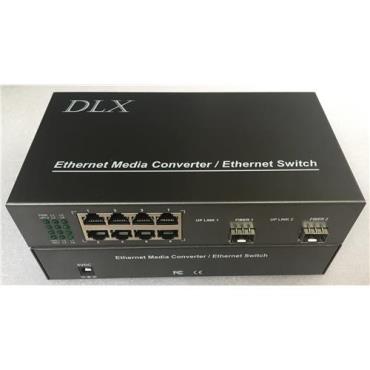

DLX-PFS04G/08G series 10/100M/1000M Ethernet Fiber Switch is included one/two 1000M fiber optical port and four/eight POE 10/100M/1000M Ethernet ports. It has the function of photoelectricity switchover between 4/8channels 10/100M/1000M Ethernet ports and 100M optical port. Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection.

APPLICATIONS

● High-definition IP video surveillance and power supply

● High Way& Road surveillance system, Capture system

● Video-surveillance system of large factories and mines systems

● IP Network Multi-function system

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● Adopts import industry PSE chip and Taiwan YDS transformer

● Single port full-power technology, and single port supports Max.30W

● Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices

● Smart POE auto-recognized system to protect devices from overflow current and over -voltage etc.

● Support VLAN Network isolation and BSTM broadcast storm-control setting

● Indicators for Power Supply, Ethernet etc.

● Supports line speed switching of all ports and in 64~1536 frame length can reach line speed

● Transmission distance: 2km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)

SPECIFICATIONS

Fiber connector SFP LC

Ethernet port RJ45,10/100M/1000M auto-negotiation, Full-duplex/Half-duplex
