DLX-PS24-G Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD (Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection.

Product Feature:

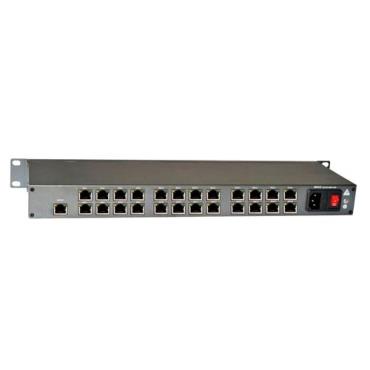

24channels 10/100M Ethernet POE switch ,one 10/100M/1000M Uplink Ethernet port.

Adopts import industry PSE chip and Taiwan YDS transformer.

Supports IEEEE802.3X,IEE802.3u,IEE802.3z/ab,IEE802.1q, IEE802.3a protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD (Powered Devices) and feeds power to it.

Support VLAN Network isolation and BSTM broadcast storm-control setting.

Supports Auto-standby mode and cable distance detection management, if no

devices been connected, then auto-standby to save energy, if cable distance less

than 10meters,then will use Lower transmission power.

Smart POE auto-recognized system to protect devices from overflow current and

over -voltage etc.

2K MAC address.

Supports line speed switching of all ports and in 64~1536 frame length can reach line speed.

SPECIFICATIONS:

Ethernet port RJ45,10/100M auto-negotiation, Full-duplex/Half-duplex

Standard IEEE 802.3i 10BASET；IEEE 802.3u 100BASETX；IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI,IEEE 802.3af/at 100Base-TX/FX

Control IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex

Temperature Operation:-20℃~+70℃, Storage: -40℃~+80℃

Humidity Operation: 10%—90%, Storage: 5%—95%

Dimension 480(L) x 250(W) x 45(H)mm

Power supply 100-260V AC
