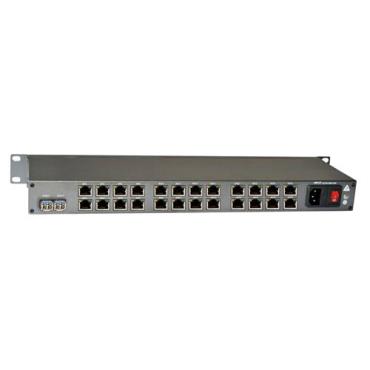

DLX-FBS-G series Fiber Backup Node type Ethernet Fiber Optical Switch is included two 1000M fiber optical ports and 4-24channels 10/100M or 10/100M/1000M Ethernet. Using imported original industrial components and All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection. Support 1+1 dual power supply backup, Management function optional, can be used in harsh conditions for long time.

APPLICATIONS

● High-definition IP video surveillance and power supply

● High Way& Road surveillance system, Capture system

● Video-surveillance system of large factories and mines systems

● IP Network Multi-function system

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● 1+1 fiber backup ports, Max.24channels 10/100M Ethernet or 8channels 10/100M/1000M Ethernet

● Support 1+1 dual power supply backup, Supports 24hours power feeds

● Anti-lightning and ESD protection for all Ethernet ports, power ports, special connector for connect to ground

● Support Non-blocking storage and forwarding switching mode, all ports can working at full line speed and full-duplex at same time

● Auto-negotiate to NIC/HUB and MDI/MDI-X

● Support VLAN Network isolation, Bandwidth, Priority, Dynamic MAC address, BSTM broadcast storm-control etc. setting

● Supports HOL protection to reduce the packet loss

● Supports physical and logical isolation of each ports

● Supports over-sized packet, QOS, STP tree etc.

● Supports super jumbo frame(2048bit) and over-sized packets up to 10k bytes

● Indicators for Power Supply, Ethernet etc.

● Supports line speed switching of all ports and in 64~1536 frame length can reach line speed

● Standard: Full-duplex adopts IEEE 802.3x standard, Half-duplex adopts Back pressure standard

● Aluminum housing, Rack mounted, Wall mounted and standalone type optional.

● Industry grade components, 220V/110V,-48V,+24V,+12V,+5V power supply optional

● Transmission distance: 2km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)

SPECIFICATIONS

wavelength MM:850/1310nm, SM:1310/1550nm, DFB:1260~1610nm

Fiber power 0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm

Receiving

Sensitivity ≤-26dBm

Bandwidth of Single wavelength 1000M
