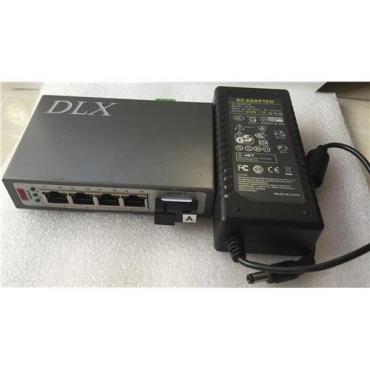

DLX-PFS04/08 series 10/100M Ethernet Fiber Switch is included one 100M fiber optical port and four/eight POE 10/100M Ethernet ports. It has the function of photoelectricity switchover between 4/8channels 10/100M Ethernet ports and 100M optical port. Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD(Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection. Support 1+1 dual power supply backup, can be used in harsh conditions for long time.

APPLICATIONS

● High-definition IP video surveillance and power supply

● High Way& Road surveillance system, Capture system

● Video-surveillance system of large factories and mines systems

● IP Network Multi-function system

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

wavelength MM:850/1310nm, SM:1310/1550nm, DFB:1260~1610nm

Fiber power 0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm

Receiving

Sensitivity ≤-26dBm

Bandwidth of Single wavelength 155M

Transmission distance 5km(MM),20km/40km/60km/80km/100km/120km(SM)

Max. optic Budget 15dbm/20dbm/25dbm/30dbm

Fiber connector ST/FC/SC optional

Ethernet port RJ45,10/100M auto-negotiation, Full-duplex/Half-duplex

Standard IEEE 802.3i 10BASET；IEEE 802.3u 100BASETX；IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI,IEEE 802.3af/at 100Base-TX/FX

Control IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex

Switching Back-plane:1.0Gbps ,Transfer Rate:14,880pps/14,880pps for every Ethernet Port

Temperature Operation:-20℃~+70℃, Storage: -40℃~+80℃

Humidity Operation: 10%—90%, Storage: 5%—95%

Power supply 48V DC,120W(AF)/240W(AT)
