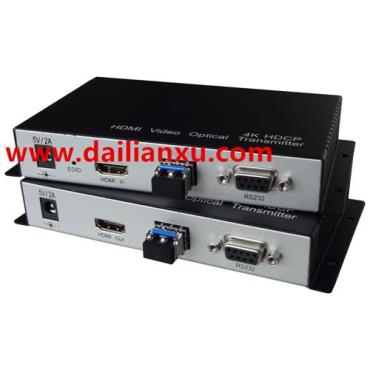

DLX-SHDVOP-H series UHD super high-definition HDMI fiber optical transmitter and receiver is support Max.3840×2160 broadcast grade 4K video long distance transmission. Special chip changes HDMI signal to 10G differential signal, using high-speed TDM and Gigabit CWDM technology to provide uncompressed high quality transmission systems for 1channel HDMI video,1channel audio signal and one bi-directional RS232 over multi-mode fiber or single-mode fiber. Support HDMI 1.4, EDID, HDCP and 3D video. Support 720p/60Hz,1080i/60Hz,1080p/30Hz,1080p/60Hz,1080p/120Hz, 3840×2160@30Hz etc. resolution. Support 7.1channel PCM voice and compressed audio, compatible with DVI. Support HDMI port hot plug, Low consumption, uncompressed, real-time, plug and play, strong compatibility etc.

The RS232 can support SONY standard(optional), Support 24bit CD HI-FI audio and high-speed data. Auto-adapt to various HD or standard video. Compared with the same kind of analog transmission systems that employ accidental amplitude or frequency modulation, DLX-SHDVOP-H products provide better transmission in quality. Support point to point transmission. DLX-SHDVOP-H adopts Modularized design, support function expanded.

APPLICATIONS

● High Way & Toll Station Surveillance

● Subway PS System

● Visual command of military bases

● Visual Intelligent Outdoor Surveillance System

● Telemedicine systems

● Digital video display

● Industry control

● Custom’s Security control

● Intelligent traffic monitoring system

● High Quality Video Conference

● Live Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● Max. 3840×2160@30Hz resolution

● Advanced Audio, HDMI, Data adaptive technique

● Full digital, uncompressed, real-time, loseless, the transmission speed up to 10G

● Support HDMI 1.4, HDMI 1.2, EDID, HDCP, 3D etc.

● RS232 compatible with SONY standard is optional

● Standalone,19inch 4U rack mounted type optional, up to 16pieces HDMI fiber converters be installed in 19inch 4U chassis.

● Modularized and industrialized design ensuring reliability and flexibility

● Fiber connector is LC

● Industry grade components, ESD protection design, Aluminum-alloy case

● No EMI, no RFI etc.

● Indicators for Power Supply, Video, Optic-link and Data-loop

● Free from In-field Adjustment

● Flexible and Easy Mount

● Protection against lightening strike and surge

● Transmission distance: 500m(Multi-mode),20km,40km,60km (Single-mode)
