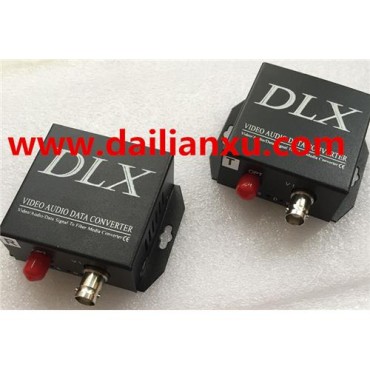

DLX-DVOPS series of products provide uncompressed high quality transmission systems for 1 channels of digitalized analog video, one reverse or forward or bi-direction data over one single mode or multimode optic fiber. Super mini in size, and is very good to install in shield of speed dome camera or other kind cameras, or connect to the connector of video output directly, save the cost of connection between camera and video fiber transmitter. In the center room, the video fiber receiver is card type and can been installed in 19inch standard chassis, very easy to manage.

APPLICATIONS

● High Way & Toll Station Surveillance

● Public Security Surveillance

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● One multimode or single mode fiber

● Adopts Original TI chip, Industry grade components , ESD protection design to ensure long time stable running

● +12V DC power supply, no need extral power supply

● One video transmission or one video and one data transmission

● Large-scale Proprietary IC Core

● Auto PAL/NTSC/SECAM Compatible

● Indicators for Power Supply, Video, Optic-link and Data-loop

● Free from In-field Adjustment

● Flexible and Easy Mount

● Protection against lightening strike and surge

● Transmission distance: 2KM(multi-mode),20km,40km,60km,80KM,100km optional(Single-mode)

SPECIFICATIONS

● Video

Channel : 1

Connector: BNC

Bandwidth: 8MHz

Quantization: 10 bits

DG: 1% typical

DP: 1 typical

SNR: >67dB

● Data

Interface Type: RS-232/485/422, Manchester, Biphase

Operation Mode: Full-duplex/Half-duplex

Data Rate: DC-384Kbps/DC-2Mbps

BER: <10E-9

Connector: RJ45/ Terminal Plug with screw clamps

● Environmental

Operation temperature: -40℃~+75℃

Storage temperature: -40℃~+85℃

Relative humidity: 0-95% Non-Condensing

MTBF: ≥10e5 hours

Power Supply: DC 12V

Power consumption <2W

● Physical Dimensions: 62(L) x 52(W) x 22(H)mm, Aluminum-alloy case
