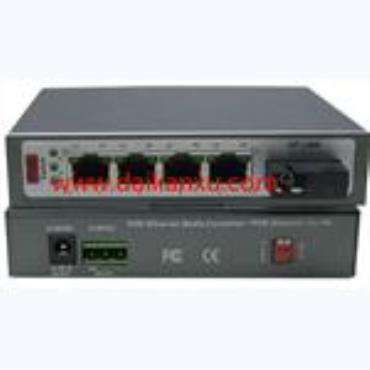

DLX-PFS series 10/100M Ethernet Fiber Switch is included one 100M fiber optical port and four or eight POE 10/100M Ethernet ports. It has the function of photo electricity switchover between 8channels 10/100M Ethernet ports and 100M optical por. Adopts single port full-power technology, and single port supports Max.30W and feeds enough power to Array IR CCTV cameras. Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT standard PD (Powered Devices) and feeds power to it. Supports smart power management, if the power of PD over 53W, the system will stop feeds low-priority devices. Has smart POE auto-recognized system to protect devices from overflow current and over -voltage etc. Adopts Auto-standby mode and cable distance detection management to ensure the switch has excellent energy saving capability. Using imported original industrial components and Gold-plated PCB. All RJ45 ports adopt advanced Self-healing multi-stage protection design, have high-level surge and ESD protection. Support 1+1 dual power supply backup, can be used in harsh conditions for long time.

Product Feature

Adopts import industry

PSE chip and Taiwan YDS transformer

Single port full-power

technology, and single port supports Max.30W

Supports IEEE802.3AF and

IEEE802.3AT protocol, Auto-detect and recognize IEEE 802.3AF/IEEE 802.3AT

standard PD (Powered Devices) and feeds power to it

Supports smart power

management, if the power of PD over 53W, the system will stop feeds low-priority

devices

Supports Auto-standby

mode and cable distance detection management, if no devices been connected, then

auto-standby to save energy, if cable distance less than 10meters,then will use

Lower transmission power

Smart POE auto-recognized

system to protect devices from overflow current and over -voltage etc.

2K MAC address

1/2/3/6 lines or 4/5/7/8

lines power supply optional, supports all PD devices

Support 1+1 dual power

supply backup, Supports 24hours power feeds

Anti-lightning and ESD

protection for all Ethernet ports, power ports

Immersion gold PCB board,

Industry grade components

Multi-services Flexible

Configuration on the Same Platform

Auto-negotiate to NIC/HUB

and MDI/MDI-X

Support VLAN Network

isolation and BSTM broadcast storm-control setting

Indicators for Power

Supply, Ethernet etc.

Supports line speed switching of all ports

and in 64~1536 frame length can reach line speed

Standard: Full-duplex adopts IEEE 802.3x

standard, Half-duplex adopts Back pressure standard

Wall mounted installation

Transmission distance:

5km(multi-mode),20km,40km,60km,80KM,100km,120km optional (Single-mode)indicator for

Power Supply, Ethernet etc.

Technologies reference

wavelength

SM:1310/1550nm

Fiber power

0 dBm ~ -3 dBm/-5

dBm ~ -10 dBm

Receiving

Sensitivity

-26dBm

Bandwidth of

Single wavelength

155M

Transmission

distance

20km SM

Max. optic

Budget

15dbm/20dbm/25dbm/30dbm

Fiber

connector

ST/FC/SC

optional

Ethernet

port

RJ45,10/100M

auto-negotiation, Full-duplex/Half-duplex
