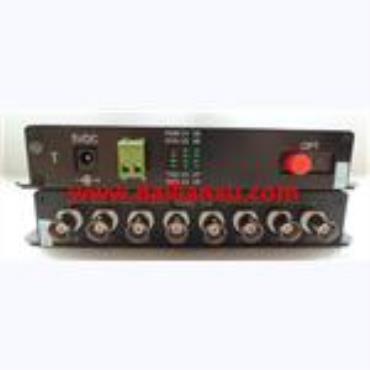

DLX-DVOP-E series of products provide uncompressed high quality transmission systems for 1~32 channels of digitalized analog video, up to one channels of single-direction PTZ data(or two channels single-direction MONO audio/one channel bi-direction MONO audio/one channel single-direction stereo audio or one channel Ethernet) over one single mode or multimode optic fiber.

The various types of DLX-DVOP-E products can meet different user demands. Adopting advanced digital fiber optic transmission technologies, DLX-DVOP-E devices can be installed rapidly without customer adjusting, and they are easy to operate and maintain. There are two types of DLX-DVOP-E available: standalone and card type.

APPLICATIONS

High Way and Toll Station Surveillance

Public Security Surveillance

Surveillance and cable TV system

Intelligent traffic monitoring system

High Quality Video Conference

Broadcast and TV program transmission

Long-distance multimedia teaching

Industrial Closed Circuit Television Surveillance

FEATURES

One multimode or single mode fiber

Modularized and industrialized design ensuring reliability and flexibility

Large capacity of gigabit optical fiber transmission allowing of easy upgrade

8 digit coding and non-compression video transmission

Large-scale Proprietary IC Core

Auto PAL/NTSC/SECAM Compatible

Support 24bits DVD format, High Dynamic Range video and Stereo audio

Multi-services Flexible Configuration on the Same Platform

Indicators for Power Supply, Video, Optic-link and Data-loop

Free from In-field Adjustment

Flexible and Easy Mount

TI chip, Industry grade components , ESD protection &Anti-lightning design

SPECIFICATIONS

Video

Channel

: 1~32

Connector: BNC

Bandwidth: 8MHz

Quantization:8 bits

DG: 1% typical

DP: 1

typical

SNR: >67dB

Audio(optional)

Audio Input/output

impedance: 1000ohm(unbalanced)

Digitization: 24bit

Bandwidth: 20Hz to 20KHz

Nonlinear distortion

coefficient: ≤ 1%

SNR: >85dB

Connector: Terminal Plug with screw clamps/RCA

Data(optional)

Interface

Type: RS-232/485/422, Manchester, Biphase

Operation

Mode: Full-duplex/Half-duplex

Date Rate:

DC-384Kbps/DC-2Mbps

BER: <10E-9

Connector: RJ45/ Terminal Plug with screw

clamps

Environmental

Operation

temperature: -30oC~+75oC

Storage

temperature: -40oC~+85oC

Relative

humidity: 0-95% Non-Condensing

MTBF: ≥10e5

hours

Power

Supply: AC 100V~260V or

DC 48V

Anti-lightning,AT and TI chip, Industry

grade components , ESD protection design

Physical Dimensions:

115mm (L)*96mm (W)*26mm(H)(1-channel mini video)

162mm (L)*110mm (W)*25mm(H)(1-4channels video)

175mm (L)*165mm (W)*30mm(H)( 5-8channels video)

482mm (L)*200mm (W)*44mm (H) (9-32channels video)
