DLX-DVOP02 series of products provide uncompressed high quality transmission systems for 2 channels of digitalized analog video, up to 32 channels of bi-directional data and audio signals, 4 channels E1/T1 and 10/100M self-adaptive Ethernet data over one single mode or multimode optic fiber, DLX-DVOP02 is a multi-function product which based on highly reliable large-scale specialized ICs designed by ourselves. It''s extremely flexible with the ability to add/drop video, audio, RS232/RS422/RS485, E1, 100M Ethernet ports via plugging in/out our field-proven service cards. Compared with the same kind of analog transmission systems that employ accidental amplitude or frequency modulation, DLX-DVOP02 products provide better transmission in quality.

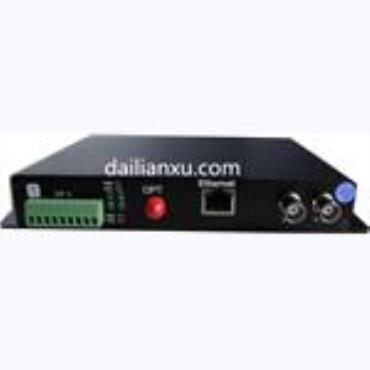

The various types of DLX-DVOP02 products can meet different user demands. Adopting advanced digital fiber optic transmission technologies, DLX-DVOP02 devices can be installed rapidly without customer adjusting, and they are easy to operate and maintain. On the front panel of the products are video connector (BNC), audio and data connector (RJ45 or Terminal Plug with screw clamps), and fiber optic connector (FC-single mode or SC-multimode). Users can easily monitor the status of power supply, connection and channels through the indicator lights. There are two types of DLX-DVOP02 available: standalone and card type.
APPLICATIONS
High Way & Toll Station Surveillance
Public Security Surveillance
Surveillance and cable TV system
Intelligent traffic monitoring system
High Quality Video Conference
Broadcast and TV program transmission
Industrial Closed Circuit Television Surveillance
FEATURES
One multimode or single mode fiber
Modularized and industrialized design ensuring reliability and flexibility
Large capacity of gigabit optical fiber transmission allowing of easy upgrade
10 digit coding and non-compression video transmission
Large-scale Proprietary IC Core
Auto PAL/NTSC/SECAM Compatible
Support 24bits DVD format, High Dynamic Range video and Stereo audio.
Multi-services Flexible Configuration on the Same Platform
Indicators for Power Supply, Video, Optic-link and Data-loop
Free from In-field Adjustment
Flexible and Easy Mount
Protection against lightening strike and surge
Transmission distance: 20km,40km,60km,80KM,100km optional(Single-mode)
SPECIFICATIONS
Video
Channel : 2
Connector: BNC
Bandwidth: 8MHz
Quantization: 10 bits
DG: 1% typical
DP: 1 typical
SNR: >67dB
Audio
Audio Input/output impedance: 600ohm(balanced) or 1000ohm(unbalanced)
Digitization: 24bit
Bandwidth: 20Hz to 20KHz
Nonlinear distortion coefficient: ≤ 1%
SNR: >85dB
Connector: Terminal Plug with screw clamps/RCA
Data
Interface Type: RS-232/485/422, Manchester, Biphase
Operation Mode: Full-duplex/Half-duplex
Data Rate: DC-384Kbps/DC-2Mbps
BER: <10E-9
Connector: RJ45/ Terminal Plug with screw clamps
Ethernet
Operation Mode: 10/100M,Full-duplex/Half-duplex Self-adaptive
Throughput Ration: 100%@10M
Packet Loss Ratio: 0%
Connector: RJ45
Environmental
Operation temperature: -30oC~+75oC
Storage temperature: -40oC~+85oC
Relative humidity: 0-95% Non-Condensing
MTBF: ≥10e5 hours
Power Supply: AC 100V~260V or DC 48V
Level 3 Anti-lightning, TI chip, Immersion gold PCB board, Industry grade components , ESD protection design
Physical Dimensions: 196(L) x 155(W) x 30(H)mm, Aluminum-alloy case
