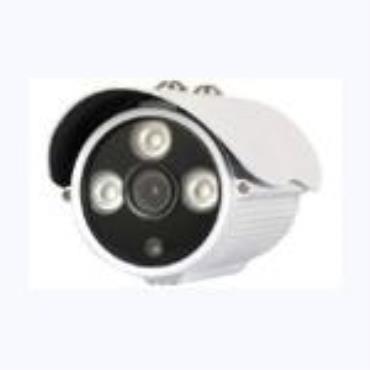

Outdoor night vision bullet camera

2.8mmLens (3.6mm,4mm,6mm,8mm,12mm etc optional)

24pieces IR leds, IR range: Up to 20m

Long-life IR lights, and SMART-IR

Built-in IR-CUT filter for CMOS sensor

Day / night auto switch

Aluminum housing, Weather proof,IP66 rating

Specification

Model

DLXBIEL

Image Sensor

1/3" CMOS

Horizontal Resolution

1080TVL

Signal System

PAL/NTSC

Min. Illumination

0Lux (F1.2, IR ON)

BLC

On

Shutter Time

1/50(1/60)s to 1/100,000s

S/N Ratio

>48 dB

IR range

20m

Focus

Fixed

White Balance

Auto

Synchronization

Internal Synchronization

Day& Night

Electronic

Video Output

1.0VP~P75Ω BNC

Power

DC12V/500mA IR LEDs on

IR Led

24pieces

Life time of IR Leds

100,000hours

Operating Conditions

-18 °C - 50 °C, Humidity 90% or less (non-condensing)

Gamma correction

0.45

Dimension

115x60x65mm

Weight

400g
