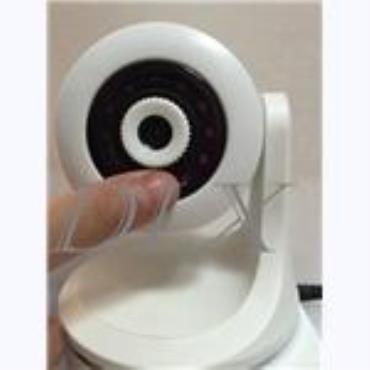

DLX-IH60 P2P PTZ HD IP camera is used for video surveillance, video sharing, baby monitoring and old person care etc. Support wireless/wired connection, has built-in high-gain Wi-Fi antenna and hidden IR LEDs. Support PTZ and Rotation angles is Horizontal 358°,Vertical 120°. watch large scale scene, various resolutions and frame rates. Supports bi-direction audio(talkback) and alarm input/output. Support require authentication for watch video and data encryption transmission for safety.

Adopts world''s leading wireless networking architecture. End user no need professional knowledge of computer/telecom etc., just need control and monitor by smart mobile etc. Operating interface is simple, obvious and humanized. User can video monitor and control the camera at anywhere and anytime.

FEATURES

• 1/4’ Megapixel HD CMOS sensor, Support resolution: 720P(1280*720)(640*480)/(320*240)(160*120)

• H.264 compression, Support three Stream, smooth and clear image, Suit to local/remote/cross regional Watch

• Support P2P(peer to peer) transmission without router setting or mapping

• Built-in Stereo speaker, clear and high voice

• Support two-way pronunciation talkbacks, built-in microphone

• Support Max.32G SD for store photo and video. Has record management function, user can set time of automatic video recording, also can automatic video recording via motion detecting. Beside,user can remote download video files of SD card by network

• Support IR-CUT double-filter, IR range up to 10meters,Image no distortion and no color cast

• Support UPNP-plug and play function

• Built-in PTZ Rotation function, Horizontal: 358°,Vertical:120°

• Support Android, iPhone etc mobiles watch directly(better quality video when using H.264 format)

• Support IE, Firefox, Safar ect. browsers

• Support remote watch video and record by internet

• Use multi-level usernames and passwords

• Support TCP/IP,HTTP,SMTP,RTSP,FTP,DHCP,DDNS,NTP etc network protocol

• Support motion detecting, send alarm signals by email or FTP upload pics etc., Also can send alarm information to alarm server.

• Adopts TCP/IP network protocol and built-in Web server, User can read by IE or other browser, Data been converted via one port for user set easily.

• Support 1,4,9,16,25,36,64,100 Images watching, support record/alarm/remote replay etc management.

SPECIFICATIONS

CPU

Operation system

Embedded Linux

Processor

32Bit RSIC Embedded Processor

Sensor&Lens

Sensor

1/4" 1.3Mpixel CMOS

performance

Automatic BLC, White Balance and Gain Control

Min. Illumination

Color:0.8Lux/F1.4,W/B:0.01LUX/F1.0

S/N

>42dB

Lens

F1.2/3.6mm

Visual angle

4.2mm at F1.4/49.13°

Video

Compression

H.264 Main Profile, MJPEG/JPEG Baseline

Resolution

720P(1280×720), VGA(640*480), QVGA(320*240)

Frames per sec.

1-30fps

Image adjustment

Saturation, brightness, contrast

Night vision

IR

11pieces Φ5 LEDs, IR range10M, Automatic IR-CUT

Audio

Compression

ADPCM

Input

Built-in microphone /AGC

Output

Built-in speaker / 3.5mm RCA connector

PTZ

Rotation angles

Horizontal: 358°,Vertical:120°,Rotation speed:1-70°/s

Pre-set

15 pre-set points

Network

Internet port

10Base-T/100Base-TX RJ45

Internet protocol

TCP/IP,HTTP,ICMP,DHCP,FTP,SMTP, PPPoE, RTSP

Online users

Support 4 users online at same time

Wireless

Wi-Fi 802.11b/g/n

Alarm

Input/Output

1ch alarm input, 1ch alarm output

Motion detecting

Sensitive motion detecting

Alarm inform

Support E-mail, FTP upload and pop - up alarm on mobile

Physical indexes

Power supply

DC5V2A

Working Environment

-10~50 °C/ 95% RH

Size

13cmx10cmx10cm

Accessories

One camera ,one power adapter
