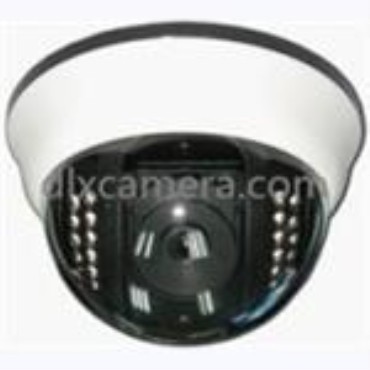

Indoor IR dome camera

3.6,6,8,12mm Lens optional

22pieces φ5 IR leds

Up to 20m IR range

Long-life IR lights, and SMART-IR

Built-in IR-CUT filter for CMOS sensor

Day / night auto switch

Specification

Model

DLXDI2312

DLXDI2310

DLXDI237

DLXDI236

DLXDI264A

DLX-DI264B

Image Sensor

1/2.8" CMOS

1/3" CMOS

1/3" SONY CCD

1/3" SONY CCD

1/3" SONY CCD

1/4"SHARP CCD

Horizontal Resolution

1200TVL

1000TVL

700TVL

600TVL

420TVL

420TVL

Signal System

PAL/NTSC

Min. Illumination

0Lux (F1.2, IR ON)

BLC

On

Shutter Time

1/50(1/60)s to 1/100,000s

S/N Ratio

>52 dB

>48 dB

>46 dB

IR range

20m

Focus

Fixed

White Balance

Auto

Synchronization

Internal Synchronization

Day& Night

Electronic

Video Output

1.0VP~P75Ω BNC

Power

DC12V/280mA IR LEDs on

IR LEDs

22PCS（φ5）

Life time of IR Leds

100,000hours

Operating Conditions

-18 °C - 50 °C, Humidity 90% or less (non-condensing)

Gamma correction

0.45

Dimension

118x75mm

Weight

240g
