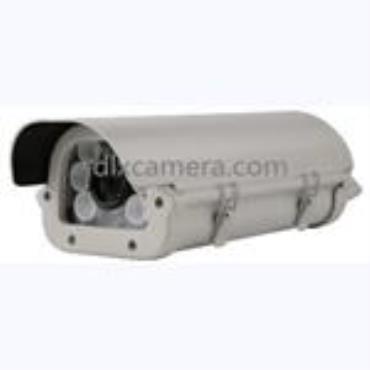

license plate capture camera
Dailianxu Engineering Co.,Ltd
Region: China
Update: 2013/12/21
INQUIRY
Key Specifications
Features
License plate capture special camera
8mm Lens/F1.2(6mm,12mm,16mm etc optional)
6pieces 1W+2pieces 0.5W array white LEDs
Up to 15m LEDs range, Day&Night both are color
Support WDR,3D-DNR,HLI(OSD optional)
Up to 4 private areas can be set
Weather proof,IP66 rating
Specification
Model
DLXLPA12
DLXLPA9
DLXLPA8
DLXLPA7
DLXLPA6
DLXLPA5
DLXLPA4
Image Sensor
1/2.8" CMOS
1/3" CMOS
1/4" CMOS
1/3" SONY CCD
1/3" SONY CCD
1/3" SONY CCD
1/3" SONY CCD
Horizontal Resolution
1200TVL
900TVL
800TVL
700TVL
600TVL
540TVL
480TVL
Signal System
PAL/NTSC
Min. Illumination
0Lux @ (F1.2, IR ON)
BLC
On
Shutter Time
1/50(1/60)s to 1/100,000s
S/N Ratio
>52 dB
>50 dB
>48 dB
IR range
15m
Focus
Fixed
White Balance
Auto
Synchronization
Internal Synchronization
Day& Night
Electronic
Video Output
1.0VP~P75Ω BNC
Power
DC12V/2A
Array white lights
8PCS(6PCS 1W/piece,2PCS 0.5W/piece)
Life time of IR Leds
100,000hours
Operating Conditions
-18 °C - 50 °C, Humidity 90% or less (non-condensing)
Gamma correction
0.45
Dimension
330x140x95mm
Weight
1.8Kg
