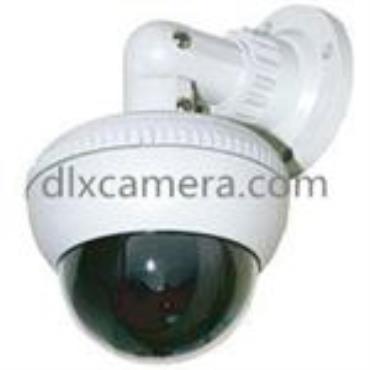

Vandal proofcamera

6mm Lens/F1.2(3.6mm,8mm,12mm etc optional)

Min. Illumination: 0.01Lux

Day / night auto switch

Weather proof,IP66 rating

Specification

Model

DLXSIB12

DLXSIB10

DLXSIB8

DLXSIB7

DLXSIB6

DLXSIB4A

DLX-SIB4B

Image Sensor

1/2.8" CMOS

1/3" CMOS

1/4" CMOS

1/3" SONY CCD

1/3" SONY CCD

1/3" SONY CCD

1/4"SHARP CCD

Horizontal Resolution

1200TVL

1000TVL

800TVL

700TVL

600TVL

420TVL

420TVL

Signal System

PAL/NTSC

Min. Illumination

0.01Lux

0.1Lux

0.1Lux

BLC

On

Shutter Time

1/50(1/60)s to 1/100,000s

S/N Ratio

>52 dB

>48 dB

>46 dB

Focus

Fixed

White Balance

Auto

Synchronization

Internal Synchronization

Day& Night

Electronic

Video Output

1.0VP~P75Ω BNC

Power

DC12V/150mA

Operating Conditions

-18 °C - 50 °C, Humidity 90% or less (non-condensing)

Gamma correction

0.45

Dimension

Φ130x280mm

Weight

750g
