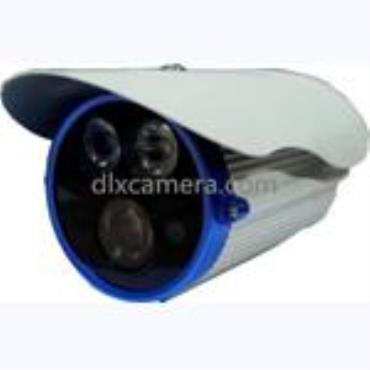

1.Adopts Embedded RTOS design,32bit DSP CPU, Integrated high performance video encode accelerator, Super high performance RTOS

2.Video code rate (32kbps-4Mbps) can be uninterrupted adjust

3.The most advanced network forwarding server technology, easy multi-user access, user password access management

4.Support video loss, Motion Detection, Probehead alarm

5.Support TCP/IP, built-in WEB browser, support IE browser

6.Built in a compression performance H.264 encoder

7.2pieces IR array lights, IR range up to 60M

8.Bi-direction audio,RS485,Alarm,POE,WIFI etc optional

9.Smart size, easy to adjust

Specification

Model

DLXHI210

DLXHI210P

DLXHI213

DLXHI213P

DLXHI220

DLXHI220P

Sensor&lens

1/4" CMOS,1Mp

1/4" CMOS,1Mp

1/3" CMOS,3Mp

1/3" CMOS,3Mp

1/2.5" CMOS,5Mp

1/2.5" CMOS, 5Mp

Pixel&CPU

1 Megapixel,TI365

1 1.3 Megapixel,TI365

2 Megapixel,TI368

Operation System

Windows XP, Windows Vista

Min. Illumination

0Lux /F1.2(IR ON)

BLC

On

Shutter Time

3/100fix,2/100fix,1/100fix,1/250fix, 1/500fix,1/1,000fix,1/2,000fix,1/4,000fix,1/10,000fix

S/N Ratio

>55dB

Video process

H.264 code, Dual Stream, AVI format, 0.1M~6Mpbs adjustable

White Balance

Auto

Protocol

ONVIF、RTSP、PPPoE、DHCP、TCP/IP、HTTP、UDP、RTP/RTCP、UPNP、FTP、DDNS

AGC

on(low, middle, high) / off

Array IR lights

2PCs,IR range:30-60M

Ethernet port

1 RJ45 Ethernet port ,10/100M

Audio connector

1channel audio input, level 2Vp-p,impedance: 1kΩ,support 1channel vibration pickup input/output, impedance 16Ω,30mw output power, support earphone or speaker connection

optional

USB port

1 USB connector, Support Max 64G USB connection, Support remote storage

optional

PTZ port

1 RS422/RS485connector,support PELCO(P) etc (PTZ) control protocol;

optional

Alarm port

1channel 1/0 input, alarm input,1channel 1/0 output and sound&light alarm

optional

Auto-iris

1 auto-iris connector, support DC driver Auto-iris lens

optional

Analog output port

1channel analog video output, support CVBS,PAL/NTSC optional

Optional function

-W(WiFi),-HW(high-power WiFi),-E(POE),-C(EVDO wireless),-G(WCDMA wirless),-J(monitor by mobile)

Power

DC12V,350mA IR on

Operating Conditions

-45 °C - 75 °C, Humidity 90% or less (non-condensing)

Weight

900g
