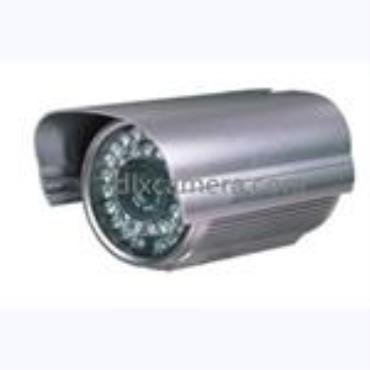

Outdoor night vision bullet camera

6mm Lens/F1.2(3.6mm,8mm,12mm etc optional)

36pieces φ5 IR leds, IR range:Up to 30m

Long-life IR leds, and SMART-IR

Built-in IR-CUT filter for CMOS sensor

Day / night auto switch

Aluminum housing, Weather proof,IP66

Specification

Model

DLXBI312

DLXBI310

DLXBI38

DLXBI37

DLXBI36

DLXBI34A

DLX-BI34B

Image Sensor

1/2.8" CMOS

1/3" CMOS

1/4" CMOS

1/3" SONY CCD

1/3" SONY CCD

1/3" SONY CCD

1/4"SHARP CCD

Horizontal Resolution

1200TVL

1000TVL

800TVL

700TVL

600TVL

420TVL

420TVL

Signal System

PAL/NTSC

Min. Illumination

0Lux (F1.2, IR ON)

BLC

On

Shutter Time

1/50(1/60)s to 1/100,000s

S/N Ratio

>52 dB

>48 dB

>46 dB

IR range

30m

Focus

Fixed

White Balance

Auto

Synchronization

Internal Synchronization

Day& Night

Electronic

Video Output

1.0VP~P75Ω BNC

Power

DC12V/300mA IR LEDs on

IR LEDs

36pieces（φ5）

Life time of IR Leds

100,000hours

Operating Conditions

-18 °C - 50 °C, Humidity 90% or less (non-condensing)

Gamma correction

0.45

Dimension

135x75x85mm

Weight

580g
