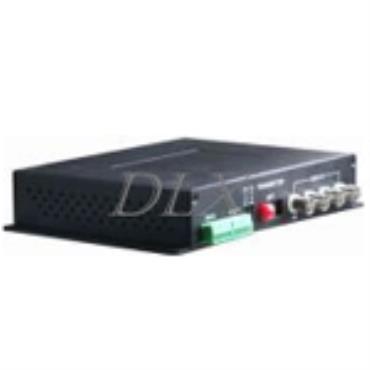

The product is a fiber optic digital multiplexer for transmitting 4 channels of high quality, uncompressed digital video, 1channels of bi-directional data over a single fiber cable. Applications for this product include CCTV, video surveillance, homeland security, its and etc.

Video interface: 4 channels

1. Input / output impedance: BNC 75ohm unbalanced connector

2. Input / output voltage: typical peak value 1vp-p, up to 1. 5vp-p

3. Format: PAL / NTSC / secam

4. Bandwidth: 8mhz

5. Digitization: 8bits / 10bits / 12bits

6. Dg <0. 7%

7. Dp 8. Snr >66db

9. Connectors: BNC

Data

1. Rs485 date rate: 0-115. 2kbps

2. Supports rs485 transparence protocol

3. Error code rate: <10~9

4. Connector: rj45

Fiber connector

1. Connector type: fc / PC

2. Fiber type: single-mode, single-fiber

3. Transmission distance: 25km

Environment

1. Operating: -30 c~ + 75 c

2. Storage: -45c ~ + 85c

3. Humidity: 0-95% non-condensing

4. Input voltage: AC 220v, DC-48v, + 24v, + 12v, + 5v

5. Power consumption: below 5w (single-end)
