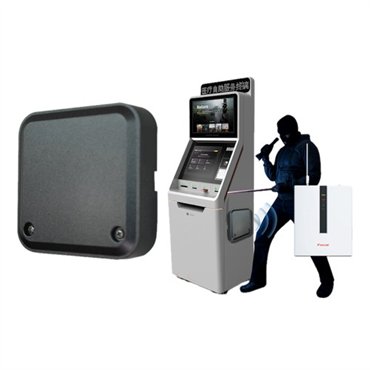

High-Security Vibration, Tilt & Temperature Detector

Meian tech Focus brand MD-2019 Commercial Security Detector

Monitors Common Attack Tools: Drilling machines, electric tools, hammers, chisels, hot spears, oxyacetylene torches.

Features

Aluminum alloy housing, anti-tamper & anti-disassembly design.

3-axis gyroscope + accelerometer: detects vibration, tilt, displacement.

Built-in temperature sensor: alarm if temp rises >5°C within 30s (hot cutting protection).

Dual sensitivity modes:

User: 4-level (DIP switch)

Engineer: 16-level fine tuning

RS-485 remote + local manual sensitivity adjustment.

Smart filtering: reduces false alarms from ambient noise.

Auto axis balance correction.

Monitors drilling, electric tools, hammer, hot spear/oxyacetylene attacks.

ATM Security Sensor

Specifications

Working Voltage: DC 9–15V

Current: Monitor ≤25mA; Alarm ≤15mA

Detection Radius: 5m (max)

Alarm Output: N/O/N/C dry contact (DC30V, 1A)

Anti-Tamper: N/C dry contact (DC30V, 1A)

Installation: Wall-mounted or horizontal (keep level/vertical to ground)

Environment: -10°C ~ 55°C, 10%–95% RH (non-condensing)

Dimensions: 90×90×28mm

Application Scenarios

ATM machines, vaults, safe deposit boxes.

Museums, cultural relics, and high-value asset storage.

High-security warehouses, unmanned cashier kiosks.

Critical infrastructure and VIP rooms.

Vibration/tilt alarm triggers.

Temperature spike alarm (simulated hot cutting).

RS-485 remote configuration.

Package Contents

1 × MD-2019 Detector

2 × Mounting Screws

1 × User Manual (English/Chinese)
