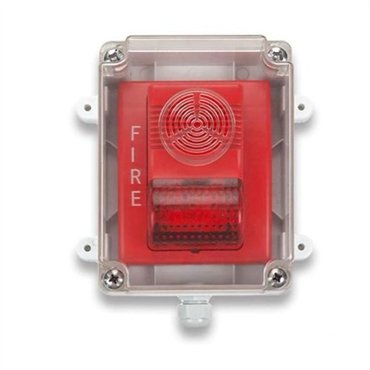

TCFSH5206 Water Proof Box For Outdoor Sounder Strobe Fire Alarm 24V

Protection rating: IP67

Material and color of enclosure: ABS

Dimension(L×W×H): 185mm×185mm×75mm

Please shop compatible sounder strobe TC5228

Or confirm the waterproof box is suitable for yours.

https://www.vedardsecurity.com

TC5109 Intelligent Fire Alarm Control Panel Core Functions: Fire Alarm Monitoring, Fault Detection & Indication, Device & Zone Management, Linkage Control, System Operation & Control, Communication & Networking, Display & Output

TC5109 Fire Alarm Control Panel https://www.vedardsecurity.com/255-to-1020-point-addressable-fire-alarm-system-lpcb-p-85

Core Functions

1. Fire Alarm Monitoring

Detect fire signals from addressable smoke/heat detectors, manual call points, and other fire-sensing devices.

Display the first/last fire alarm, zone location, device address, and time stamp in real time.

Trigger fire alarm output (HJ+/HJ–) and sounder strobe for on-site audible-visual alert.

Fault Detection & Indication

Monitor system faults: main power fault, battery fault, loop communication fault, system fault.

Monitor field device faults: detector fault, module fault, sounder strobe fault, FPE fault, zone fault.

Output fault relay signal and show fault information on LCD and LED indicators.

2. Device & Zone Management

Support up to 4 loops, max 255 addressable points per loop, total 1020 points.

Support up to 48 zones with independent fire alarm and fault/disable indicators.

Support device registration, query, definition (second code, type, attribute, location note).

Support zone/addressable point/sounder/FPE disable and enable.

Linkage Control

Automatically start/stop FPE devices (I/O modules, fire dampers, fire pumps, etc.) via logic linkage formulas.

Support linkage action and feedback signal display.

Support offline programming via USB for linkage logic and device notes.

System Operation & Control

Three-level authority control with password protection (Level I/II/III).

Functions: mute, reset, self-test, silence/resound sounder.

Multi-language switch (Chinese/English) and time/print setup.

Store up to 2000 pieces of fire alarm, fault, and event history logs.

Communication & Networking

Equipped with CAN and RS485 interfaces for CRT connection and networking.

Support master/slave/stand-alone networking mode and information transmission /reception.

7-inch color LCD (800×480) for visual information display.

Built-in printer for real-time printing of fire, fault, and event records.
