TC5109 Intelligent Fire Alarm Control Panel Core Functions: Fire Alarm Monitoring, Fault Detection & Indication, Device & Zone Management, Linkage Control, System Operation & Control, Communication & Networking, Display & Output

https://www.vedardsecurity.com/lpcb-addressable-fire-alarm-c-18

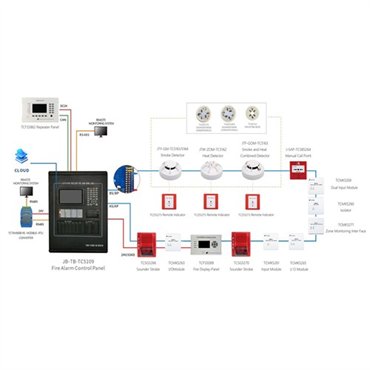

TC-ZJH5008 loop extender is powered by DC24V, and the input and output of bus signals are electrically isolated, which can enhance the anti-interference ability of the whole fire alarm system and has the function of extending the communication distance of the detector bus.

II. Characteristics

1. Built-in isolated power supply with strong interference capability;

2. And the bus and the DC24V power line are non-polar connected;

3. Raise bus voltage and extend bus communication distance;

4. With output short circuit detection function;

5. Up to 255 devices can be attached;

6. Plug-in structure, convenient and reliable installation;

Core Functions

1. Fire Alarm Monitoring

Detect fire signals from addressable smoke/heat detectors, manual call points, and other fire-sensing devices.

Display the first/last fire alarm, zone location, device address, and time stamp in real time.

Trigger fire alarm output (HJ+/HJ–) and sounder strobe for on-site audible-visual alert.

Fault Detection & Indication

Monitor system faults: main power fault, battery fault, loop communication fault, system fault.

Monitor field device faults: detector fault, module fault, sounder strobe fault, FPE fault, zone fault.

Output fault relay signal and show fault information on LCD and LED indicators.

2. Device & Zone Management

Support up to 4 loops, max 255 addressable points per loop, total 1020 points.

Support up to 48 zones with independent fire alarm and fault/disable indicators.

Support device registration, query, definition (second code, type, attribute, location note).

Support zone/addressable point/sounder/FPE disable and enable.

Linkage Control

Automatically start/stop FPE devices (I/O modules, fire dampers, fire pumps, etc.) via logic linkage formulas.

Support linkage action and feedback signal display.

Support offline programming via USB for linkage logic and device notes.
