smoke heat detector

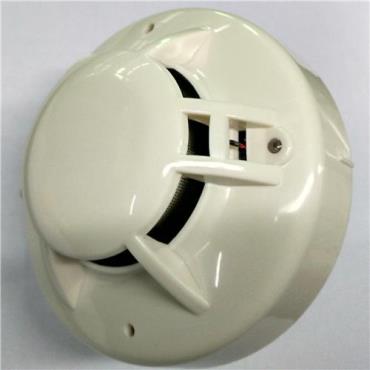

The detector is a combined smoke and heat detector with photoelectronic sensor and heat thermistor together. This detector is designed to provide open area protection and to be used with most conventional fire alarm control panel. Two LEDs on each detector provide local 360° visible alarm indication. They flash every 3~5 seconds indicating that power is applied and the detector is working properly. The LEDs latch on in alarm. LEDs will be off when a trouble condition exists indicating that the detector sensitivity is outside the listed limit. The detector can be reset only by a momentary power interruption.

Features and Benefits

Compatible with all the conventional fire alarm control panel

Unpolarized wire input

Wide range of operating voltages

Unique optical sensing chamber and High

precision electronic thermistor

Built in microprocessor intelligent software

Two LEDs blink standby, provide 360° visibility

Insect-resistant screening

Twist-on mounting base with tamper lock

Drift compensation and smoothing algorithms

Remote Indicator LED can be connected.

Complete fire alarm system category can be downloaded at fire security system

Technical Specifications

Diameter: 103mm

Height (including mounting base): 55 mm

Weight: 155 g

Operating Temperature Range: -10°C to 50°C

Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing

Latching Alarm: Reset by momentary power interruption

System Voltage (nominal): 24 VDC (9V~ 28VDC)

Standby Current: 60 μA @ 24VDC

Alarm Current: 30 mA @ 24VDC

Fixed Temperature Rating: 57°C (135°F)

Rate of Rise Detection: Responds to greater than 15°F/min
