Intelligent bus control mode; maximum 255 addressable points per loop, max 4 loops, max 48 zones

Color menu display interface

Loop card type design:1-4 loop card can be selected

Glass fuse per loop

Black box function

Independent controlling password for the specially needed gas recharging units

Self-design loop protocol

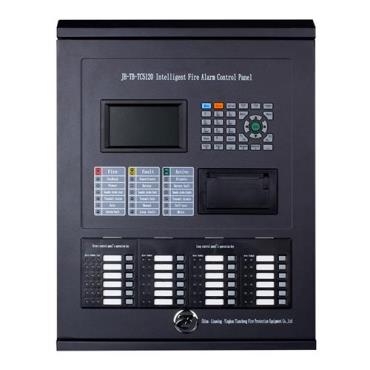

Wall-mounted structure, compact and exquisite

Language: simplified Chinese and English

Approvals：LPCB（EN54-2/4） CE

Technical Specifications

Mains supply AC230V (50HZ),Voltage range: +10%～-15%

Standby battery 12V/12AH sealed lead acid battery *2

LCD screen size 7-inch color LCD screen

Operating Environment Temperature: -5°C～+50°C;Relative Humidity: ≤95%, non-condensing

Capacity 1020 addressable points

Communication Interface RS232, RS485, C A N, U S B

Dimension (L×W×H) 420mm×140mm×560mm

Output Five output. Fault output. 24V power output. Loop output
