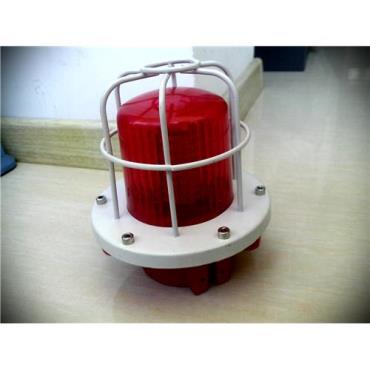

Chemical industry security, oil field security equipment explosion proof beacon alarm lighter.

JDJD-G is Non-coded Fire alarm, security system connection visual alarm with flashing.

JDJD-G can be installed at explosion place with IIC or IIB grade T6 temperature situation.

When incident happens such as combustible gas, toxic gas leakage, the flashing light will be triggered by alarm control panel and make high light flashing. It can be connected with manual call point directly and triggered by manual push alarm.

Specification: Exd(ib) IIC T6, or Exd(ib) IIB T6 explosion proof mark

Dust and water proof: IP65

Working voltage: DC24V or AC 220V

alarm current: <=25mA

Flashing times:60 times/min

Working temperature: -20C to +50C

Relative humidity: <=95%

Working atmospheric pressure: 80kPa to 110kPa

Net weight: 1.17kg

https://www.vedardalarm.com/beacon-explosion-proof-chemical-industry-factory-gas-warning-p-211

Installing: using M6 screw to fix the flashing light on wall or ceiling. Please refer to the instruction manual to correct the install the alarm system.
