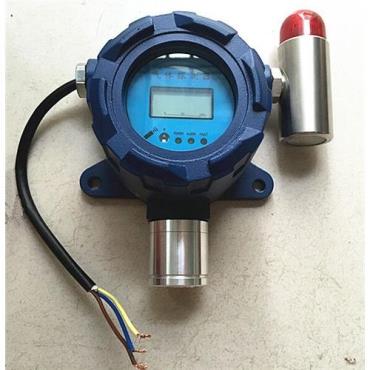

Gas leakage detector for oil field, oil stock, chemical factory combustible gas (or toix gas) detector with audio and visual alarm on spot.

Combustible gas detector explosion proof is made according to GB15322.1-2003 for measure 0~100%LEL point type combustible gas sensor and GB3836.3-2000 electric equipment requirement Exd for using at gas explosion environment.The explosion proof mark is Ex d IIC T6 Gb and environment proof IP65

It has character of high reliability, low power consumption, interference resistance etc. It is used to prevent fire, explosion and save people and property.

1. Measure objects: various types of flammable volatile liquid.They are methane, ethane, propane, butane, ethylene, propylene, acetylene, hydrogen, Carbon monoxide, natural gas, LPG, coal, gasoline etc.

2.Measure range: 0-100%LEL

3.Sampling methods: dispersive

4.tolerance: +/-5%F.S

5.Responsive time:<=30s

6.Working voltage: DC24V

7.Power consumption:<=3W

8.simulation output: 4-20mA or RS485 standard signal output

9.Atmospheric pressure: 86~106KPa

10.Working temperature: -40C ~+70C

11.working relative humidity: <90%R.H

12. Dimension:140*140*91mm

13. Net weight: 2.4kg

14. Ex-proof mark: Ex dIIC T6 Gb

15. dust and water proof: IP65

This package including gas detector and display with sound and light alarm on spot. Measure low value and high value should be fixed at factory and not available for adjust by customer. As a measurement device, it should be installed and maintain by professional company with certificate.

There are specific gas resistance, for example, the using environment is with H2S gas, then H2S gas resistance type should be used.

https://www.vedardalarm.com/industry-gas-leakage-detector-explosion-proof-security-equipment-p-212

Toxic gas detector is available as well. Please contact us for your requirement. vedardalarm.com
