There are three types beams system. They are infrared beams, infrared grating, and infrared light wall. They are applied at different situation. Infrared beam is installed on wall or fence. It has 3Infrared light wall beams or 4 beam, 6 beams and length is short compared with other two types. So, it should be installed over the wall or fence or with bracket and pole to get enough protection height. But it has maximum 100 meters detection length. Infrared grating is used for windows, balcony or gate. It has 4 beams or 8 beams and with 620 mm to 1200 mm. The detection distance is 10 meters only. Infrared light wall is used for fixing on ground and can have lamp on cover.

Customers frequently asked questions about Solar Beam systems at http://www.vedardalarm.com/blog/customers-frequently-asked-question-about-solar-beam-systems/

Outdoor Siren strobe for alert of driveway intrusion detection system.

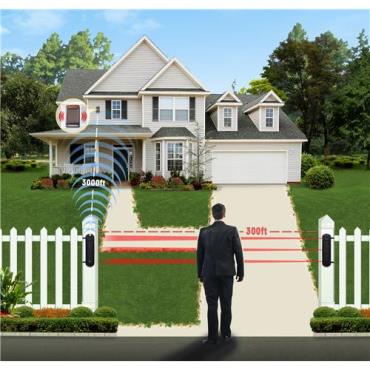

The package is used for house or business perimeter security.

It is newest technology wireless solar powered beams system and solar-powered siren strobe.

Leading package includes 1x 3 beams with LCD calibrator solar-powered infrared detector and 1 pc siren strobe solar-powered outdoor installation with 2 pcs remote controller.

One siren strobe can equip with maximum 32 wireless beams and remote controllers.

Details of driveway intrusion alert neighbor and police notice security system

Wireless beams detector updated with LCD calibrator and electricy power supply and battery rechargeable power jack. Infrared Distance 120m, Wireless emitting distance 1km

Specification of the solar powered wireless beams detector:

Infrared Distance: 120m

Wireless Transmitting Distance: 800m

Wireless Transmitting Frequency: FM: 433MHz

Maximum alarm times in 24 hours: Not more than 50times.

Battery Capacity: 500mAh (Transmitting terminal), 1000mAh (Receiving Terminal)

Working environment temperature range: -30C~70C

Number of infrared beams: 3 beams

Operating Voltage: 3.3V

Static Operating Current: Transmitting terminal=2mA at light intensity of 1800LX (note: the outdoor light intensity in cloudy or rainly days is about 2000LX)

Dimension of product: 340mm*50mm*84mm of Receiving terminal, 340mm*50mm*45mm of transmitting terminal
