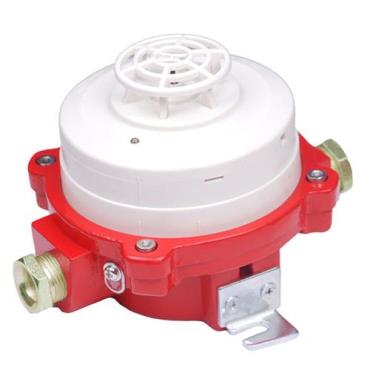

Explosion proof ExdIICT6 grade oil field, chemical factory applied fire system component.

IP65 weather proof and dust proof industry grade heat detector.

Relay output hardwired heat detector can work with conventional and addressable fire alarm control panel.

Specification:

1. Explosion proof: ExdII CT6

2. Working voltage: DC-20V~DC28V

3. Standby current: <=0.6mA

4. Alarm current: 10mA~30mA

5. Alarm status: Red LED light on

6. Working environment

temperature: -20C ~+55C

relative humidity: <=95% non condensation

Atmospheric pressure: 80kPa~110kPa

7. input wiring diameter: 2-M22*1.5

Vedard Security system company offers professional industry grade fire security equipment, alarm material, fire detection system and all types security alarm systems.

Technical datasheet or install guide visit http://www.vedard.com
