Microwave barrier develops an electromagnetic beam using high frequency microwaves that passes from a transmitter to a receiver, creating an invisible but sensitive protection wall. When the receiver detects a difference of condition within its beam, it begins a detailed analysis of the situation that, if considered a real intrusion, provides an alarm signal that can be treated in digital form.

The difference of Microwave Barrier and infrared barrier is the protection area and environment endurance. On these two aspects, Microwave Barrier performs better than Infrared Barrier. Microwave Barrier can form a cubic protection space and not just a line. The space is about 2.5m *5m and can be adjustable. Microwave Barrier can be installed at wall or fence of military sites, air port, power plants where high security requirement is needed.

https://www.vedardalarm.com/microwave-barrier-mcb150-outdoor-perimeter-security-equipment-p-161

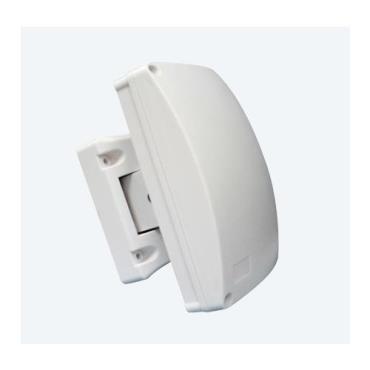

MCB-150 is hard wired Focus brand Microwave Barrier. Below is the details:

MW frequency:10.525GHz

Detection distance:150m

Central barrier area width:5m

Central barrier area height:2.5m

Grass width:0.3m

Snow width:0.5m

Power input:12～18 VDC

Working current

Transmitter：25～30mA，12VDC

Receiver：30～35mA，12VDC

Alarm Relay capacity:（N.C.）50mA,20VDC

Alarm time:≤3s

Tamper switch capacity:（N.C.）0.1A,20VDC

Max emitting power:35mW（common）；50mW（Max）

Detection speed:0.1～10m/s

Alarm output:≥3s

Temperature:-40℃～+65℃

Humidity:Max 98%

Dimension:158×113×46mm

Water-proof design

Built-in water-proof equipment, anti-rain/snow 30mm/h

A microwave barrier is one of the most reliable and safe intrusion detectors used for outdoor perimeter protection.
