2.0MP 1/2.9” CMOS sensor Sony307, 20X optical zoom (2MP 36X version, 5MP 20X version and 5MP 36X version are optional);

ONVIF2.4 ;

Support TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP protocol;

Strong lightning protection, anti-surge function;

7" body construction, outside weather-proof level up to IP66;

Intelligent IR illumination & power consumption is variable, dependant the zoom factor.

Camera:

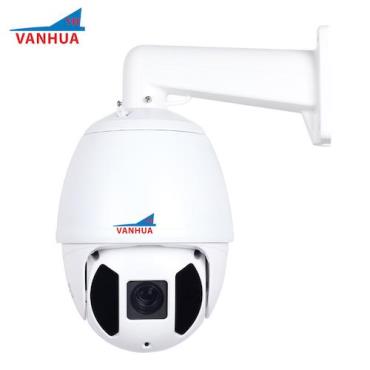

Model No. : VH-NP2020-M06

Soc: Hi3516E

Sensor: 1/2.9" CMOS 2MP Sony307

Output Pixel: 1920x1080/30fps 1920x1080/25fps

Lens: 20X f=4.7mm~94mm

BLC: Support

AGC: Auto/manual

WB: Auto/manual/indoor/outdoor

S/N Ratio: ≥50dB

PTZ:

Communication Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P

Video compression: H.265/M-JPEG

Software Contro: IE, CMS, Management Platform

App: EseeCloud3(avilable for both Android and iOS)

Rotation range: Pan:0~360°,Tilt:0~93º

Rotation speed: Pan:0~200°/s , Tilt:0~80°/s (mdeium speed version is optional) Preset Points: 220pcs presets(dwell time 01-60s interval available)

A-B scan: User programmabel(scan speed 1-9 levels setting available)

Guard Tours: 3 groups( Max.16 points, dwell time user selectable)

video compression: H.264/H.265M-JPEG

Operating temperature: -40℃~+60℃

Operation menu: English

Power: DC 12V 4A

Consumption: ≤25W

Lightning Protection: Transient voltage 6000V

Related validation: IP66, CE, FCC, RoHs

IR parameter:

Auto Control IR LED: PWM

LEDs: 2PCS laser LED + 10PCS array 42mil IR LED

IR distance: Up to 150 meters

Support ambient light detection: IR illumination on 1-9 grades selectable

Packing:

Each one is wrapped in plastic bag and surrounded by foam, then in giftbox, 2PCS/carton.

Giftbox size: 32*31*44CM; Carton box size and G.W.: 66*34*48CM, 12.16KG.
