2.0MP 1/3” CMOS sensor, 10X optical zoom (2MP 4X version, 5MP 4X version and 5MP 10X version are optional);

ONVIF2.4 ; Compatible with HIKVISION ,DAHUA, XM,Video park NVR;

Support TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP protocol;

Strong lightning protection, anti-surge function;

Outside weather-proof level up to IP66;

Intelligent IR illumination & power consumption is variable, dependant the zoom factor.

Camera

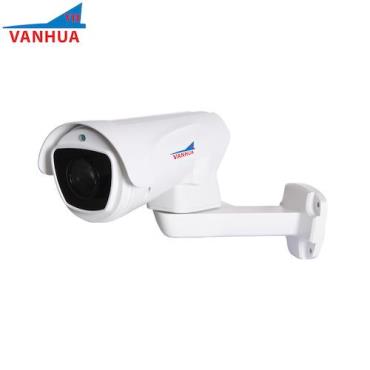

Model No.: VH-NP2010-B01

SoC: Hi3516E

Sensor: 1/3" CMOS 2MP Sony307

Output Pixel: 1920x1080/30fps 1920x1080/25fps

Lens: 10X f=5.1mm~51mm

BLC: Support

AGC: Auto/manual

WB: Auto/manual/indoor/outdoor

S/N Ratio: ≥50dB

PTZ

Communication Protocol: TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P

Software Control: IE, CMS, Management Platform, App

Mobile View(optional): Android, iPhone

Rotation range: Pan:0~220°,Tilt:-45~40º

Rotation speed: Pan:0~30°/s , Tilt:0~25°/s

Preset Points: 220pcs presets(dwell time 01-60s interval available)

A-B scan: Any point in range: 0 to 220 degree and -45 to 40 degree

Guard Tours: 3 groups( Max.16 points, dwell time user selectable)

video compression: H.264/H.265M-JPEG

Operating temperature: -40℃~+60℃

Operation menu: English

Power: DC 12V 1A

Consumption: ≤15W

Lightning Protection: Transient voltage 6000V

Related validation: IP66, CE, FCC, RoHs

IR parameter

Auto Control IR LED: PWM

LEDs: 6 PCS array 42mil IR LED

IR distance: Up to 100 meters

Support ambient light detection: IR illumination on 1-9 grades selectable

Packaging:

Each one in inner box, 12PCS/carton.

Carton box size and G.W.: 68*41*62CM, 12.16KG.
