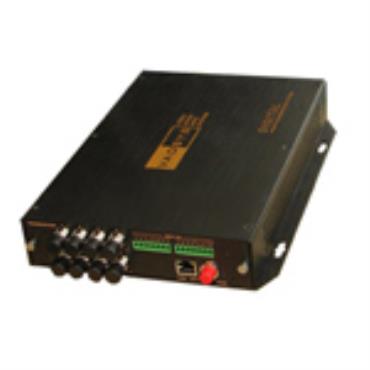

VDS2850 provides 8 video and 1 data over one SM or MM optical fiber.

Features and Specifications:

Exceeds RS-250C Short-haul.

10 Bit Video with a Signal to Noise ratio greater than 63 dB (Test by Tektronics VM700A)

Video Bandwidth of 8 MHz (-3dB) for support of NTSC, PAL and SECAM (Option for 10 MHz).

Differential Gain and Phase less than 1% and 1°, respectively.

Video Auto Gain Control

Lightning-proof meets IEC level 4

24 bit, Bi-directional Audio flat from 20 to 20K Hz, S/N greater than 82 dB

Supports up to 8 bi-directional, full duplex, data channels of RS-232C, RS-422, RS-485, CMOS or TTL at up to 115.2 Kbps.

Video, power and Optical front panel status indicators.

Optical budget of up to 24 dB.

AC operation for 90~240 VAC

Available in portable, rack-mount and modular configurations with all optical wavelengths.

Applications include distance learning, Intelligent Transportation Systems and surveillance.

Temperature range -40° to +75°C.
