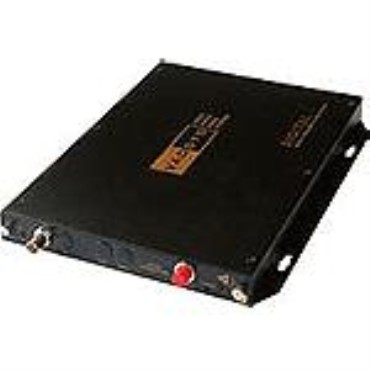

Features:

Transmitter: 1 HD-SDI BNC input port, 1 HD-SDI standby input, 1 local mornitoring loopout port

Receiver: 2 HD-SDI output, 1 HD-SDI standby input

● Automatic re-clock at 143Mbps, 177Mbps, 270Mbps and 1.485Gbps.
● Automatic equalization of up to 350m @ 270Mbps and 140m @ 1.485Gbps of Belden1694A cable
● Up to 100 kilometers over singlemode fiber
● Transmitter: 1 Input BNC, 1 standby input BNC, 1 local output BNC
● Receiver: 2 Output BNC, 1 standby input BNC
