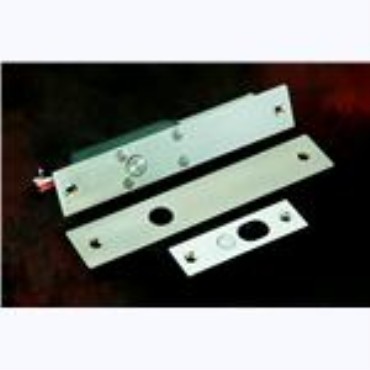

1) Solenoid bolt is a flush mount type of electro-mechanical locking mechanism which is characterized by the use of a solenoid to throw the bolt.

2) Designed for use in double acting doors and can be installed on inward-swinging or outward-swinging doors.

3) Fail Safe

4) Lock when energized, with magnetic induction

5) Door Status Signal NC Output

6) Lock Status LED Indicator

7) Time Delay Feature - 0/3/6/9 seconds

8) Single Voltage - 12Vdc

9) Versatile mounting bracket ideal for all door types

Specification:

Lock Size: 200(L) x 35(W) x 38(H) mm

Strike plate size: 100(L) x 30(W) x 20(H)

Lock tongue size: ?15 x 15mm

Input voltage: 12VDC

Starting Current: 650mA

Standby Current: 250mA

Low current draw: 4.5W

Working Temperature: -20 ~ 55°C

Application: Suitable for all kind of doors with frame and 90/180 degree to open doors
