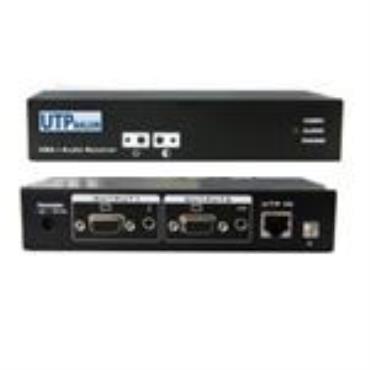

The VGAE1R VGA video and audio receiver is the remote device in the VGA and audio transmission system that allows transmission of VGA video and audio signal via Unshielded Twisted Pair (UTP) cable. VGAE1R receives one channel of VGA & Audio via UTP and provides two pairs of VGA & audio outputs. The unit is compatible with VGAE1T and VGAE4T transmitters with a transmission distance up to 1000ft / 300m. With brightness and contrast adjustments, the video quality can be assured in different distances with a standard resolution of 1024x768 and up to 1600x1200 @ 60Hz for 500ft / 150m.


Features:
--Transmission Distance up to 1000ft / 300m
--VGA video & audio signal transmission via UTP cable (CAT5 / CAT5e).
--Built-in brightness and contrast adjustors
--Provides two sets of VGA video & audio outputs
--Quality stereo audio
--High video resolution depends on the length and quality of UTP cable with standard resolution 1024x768 and up to 1600x1200 @ 60Hz
--Exceptional interference rejection
--Built-in transient protection
--Multi-platform support; supports PC, Mac, Sun, and Linux systems
--Supports VGA, SVGA, XGA, SXGA, and Multi-sync monitors
--OS Support: Windows 2000 / XP / Linux / Mac / Sun
--12V DC Power
