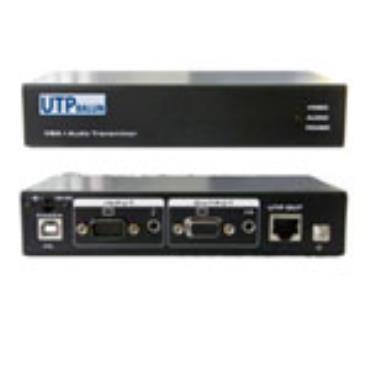

The VGAE1T is an active VGA video & audio transmitter that provides one set of VGA video & audio signal transmission via Unshielded Twisted Pair (UTP) cable. VGAE1T provides one channel of VGA and AUDIO via RJ45 output and one set of local VGA video & audio outputs. When working with VGAE1R, VGAE1T can extend VGA video & audio transmissions up to 1000ft / 300m with a standard resolution of 1024x768 and up to 1600x1200 @ 60Hz for 500ft / 150m.

Features:

--Transmission Distance up to 1000ft / 300m when used with VGAE1R

--VGA video & audio signal transmission via UTP cable (CAT5 / CAT5e)

--350 MHz signal transmission bandwidth

--Provides one RJ45 output and one pair of local VGA video & audio outputs

--Quality stereo audio

--High video resolution depends on the length and quality of UTP cable with standard resolution 1024x768 and up to 1600x1200 @ 60Hz

--Exceptional interference rejection

--Built-in transient protection

--Multi-platform support; supports PC, Mac, Sun, and Linux systems

--OS Support: Windows 2000 / XP / Linux / Mac / Sun

--12V DC or USB Power (12V DC power supply included)
