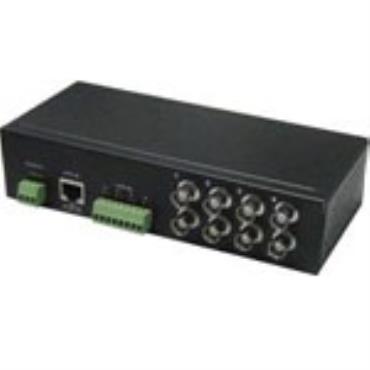

The VAB400R video receiver is a 4 channel active device that allows reception of real-time monochrome (B/W) or color video via Unshielded Twisted Pair (UTP) cable. The unit receives four channel of video from transmitters with both RJ45 and screw terminals available for connections and provides four pairs of BNC video output.

The unit is compatible with active transmitter (e.g. VAB100T) and passive transceivers (e.g. VPB100T, VPB400TRJ) with transmission distance up to 4000ft / 1200m and 2000ft / 600m respectively. Each channel can be independently adjusted for the different transmission distances and image quality based upon the type and quality of the cable being used.

Switch Chart: Each switch can be independently

adjusted for the different transmission distances and image quality based upon the type and quality of the cable being used.

Features:

--Transmit a full motion color video signal up to 4000ft / 1200m and a B/W video signal up to 8000ft / 2400m.

--4 channel active receiver hub, built-in 4 pieces VAB100R.

--Supports all bandbase signals including PAL, NTSC, SECAM.

--Signal Transmission via UTP cable.

--Transmission Signal 1Vpp Composite Video.

--Built-in transient protection and ground lifting, damaging voltage

spike problems are eliminated.

--Video receiving connectors with both RJ45 connector and screw type terminals.

--Use VPB400T 4 channel passive video transceiver as a transmitter to work with Active VAB400R receiver; transmission range is 3000ft / 1000m.

--Built-in Filter: 0~6MHz

--Red LED: Power on/off

--Yellow LED: Signal

--Power supplied 12V DC
