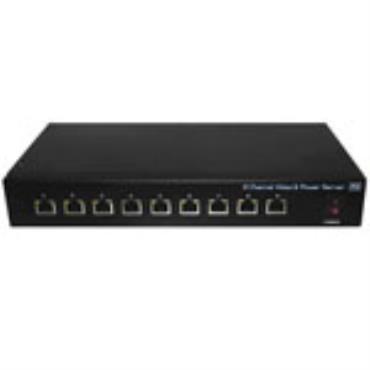

VBP24DC-09 is a passive video balun power hub device capable of transmitting 9 channels of baseband video signal and providing 12 VDC power for all 9 channels at the same time using UTP cable. These devices are designed to be used with VBP2412DC passive video and power assurance balun. Passive video signal transmission up to 1000ft / 300m and provide the camera with 12 V DC @ 300mA maximum. Built-in Lightning surge protection and interference rejection.

Features:

--Using UTP cable to transmit video signal and provide power to camera at the same time

--Low cost on cabling, save time on installation and trouble shooting

--Transmission distance up to 1000ft / 300m

--Support all baseband signal formats including PAL, NTSC and SECAM

--International power input support 100-240 V, very efficient power converter and save energy

--Regulated 24V DC output power

--Using 3 pairs of UTP cabling to carry more current

--Over current protection and trouble indicator LED

--RJ45 jack design for easy connection

--Connector reverse polarity and short circuits protection design

--Built-in Lightning surge protection and Interference Rejection

--Low noise exhaust fan ensure system stability

--Main power switch with indicator light

--Rackmount Ear included
