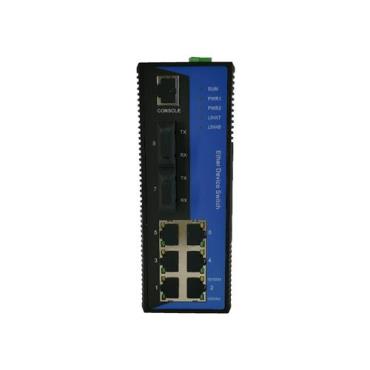

UPCOM IES308-2F is a rugged industrial grade, Din-Rail, layer2, Managed Ethernet switch which supports 6-port 10/100M Base-T(X) +2-port 100Base-FX. It provided some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.

IES308-2F adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, EMC level 4 protection, dual power DC12-48V or single AC/DC220V optional, can satisfied the requirement of various industrial applications such as Industrial automation, smart grid, rail transportation industry, safely city, and new energy, etc.

Feature

Support 6-port 10/100M RJ45 + 2-port 100M FX;

Support static multicast filtering, IGMP Snooping;

Support MW-Ring redundancy technique (failure recovery time <20ms);

Support STP/RSTP/MSTP;

Support managed function such as VLAN, QoS, Trunking, and port mirroring;

Support CLI, WEB, Telnet, SNMP management;

Support RMON and private MIB table;

Support firmware upgrade online;

Support relay alarm output;

Support indicator status display;

Support IP40 protection, aluminum alloy shell, fanless design;

Support Broadcast storm suppression;

Support dual DC12-48V or single AC/DC 220V power supply;

Power supply input support anti-reverse protection and non-polarity;

Support over Voltage, over current, EMC protection;

Support -40~75°C wide operating temperature range;

DIN-Rail or wall Installation;

Warranty:5years
