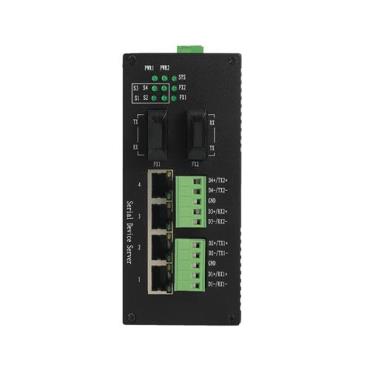

MW2244G Modbus Gateway support 4-port RS485 + 4-port 10/100Base-T(X) + 2-port 100M FX with Modbus TCP and Modbus RTU protocol, adopts high-strength IP40 protective shell, industrial-grade EMC design, supports Auto-Negotiation adaptive technology, provides LED status indication, and supports voltage 12~48V DC power input to increase the reliability of the communication network.

MW2244G can easily and conveniently centralize the management of scattered serial devices and hosts through the network. The communication rate supports 110~115200bps optional. Built-in Modbus TCP and Modbus RTU protocol, the user can easily realize Modbus Ethernet device and Modbus serial device connection. Based on industrial installation requirements, 35mm rail installation mode is provided. This product adopts the industry excellent network solution, and the operating temperature range is -40~85℃, which can meet the requirements of various industrial scenes and provide convenient serial communication solutions.

Features

Support 4-port RS485 + 4-port 10/100Base-T(X) + 2-port 100M FX ;

Support 4-port serial isolation function, isolated voltage 500V AC;

Support IEEE802.3/802.3u standard, store and forward Exchange Mode;

Support TCP server, TCP client, UDP, Modbus TCP(RTU) transmission mode, 110~115200bps line speed non-blocking communication;

Comply with TCP, IP, UDP, Modbus TCP, Modbus RTU, ARP, ICMP, HTTP, TFTP;

Supports Modbus Slave mode, support up to 4 TCP master connections;

Support Web management;

Support serial port settings, can connect two serial devices via Ethernet;

Supports gateway, cross-routing communication;

Low-power consumption design;

Metal housing with IP40 and high level EMC protection;

Support wide voltage 12-48V DC power input;

Support DIN-Rail Mounting or Wall Mounting installation;

Working temperature range:-40~85°C;

Warranty:5years
