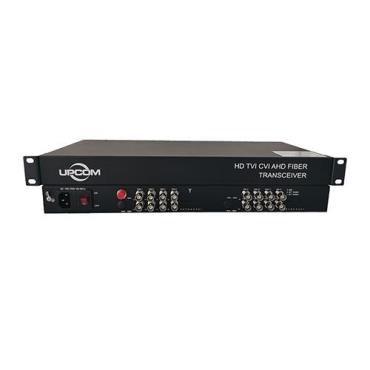

CHD01601-1080 supports 16-Ch TVI/CVI/AHD TO Fiber Converters is universal type supporting High Definition Analog video format HD-TVI / HD-CVI / AHD, can simultaneously transmit 16 channels video with 1-port RS485 over one core multimode or single-mode optical fiber. It also supports the regular analog video format such as PAL / NTSC /SECAM, it is a kind of universal fiber transmission solution / product for CCTV analog video/data signals.

Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.

Feature

Support 16 channels AHD/CVI/TVI Over Fiber Converter with 1-port RS485, 1080P;

Lossless non-compression real time transmission；

CWDM technology offer 3.2G bandwidth to 16ch video , support higher performance；

Automatically identify formats of input video: AHD/TVI/CVI/PAL/NTSC/SECAM；

Support 720P/25/30/50Hz, 960P/25/30Hz,1080P/30Hz;

Support FC connector, single fiber, single mode,20km;

Support External power DC5V;

Advanced lightning protection design ,support 5.7KV lightning protection；

Through LED indicators to inform its functional mode；

Wide range of operational temperature(-15 °C ~65°C)；

Rack-mounted, simple installation;

Compatible with AHD/CVI/TVI Cameras;

Warranty: 3 years ;
