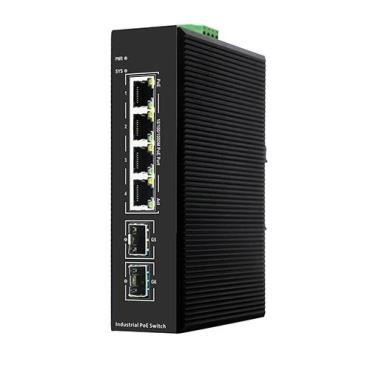

PIES106G-2GS-4P Industrial PoE Switch, support 4 Gigabit PoE Ports + 2 Gigabit SFP Port + 1 Console port, DIN-Rail & Wall mounts installation, support power input (DC12-55V), working temperature -40-75°C, the reliable industrial design can ensure the stability of the system without interruption.

This series of Industrial PoE switches provide advanced network management capabilities: Redundant Ring, Loop protection, VLAN, QOS, Speed control, Port Mirroring, and firmware online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites. All components use industrial grade for greater reliability, designed and rigorously tested to handle extremely harsh environments subject to a wide range of operating temperature, vibration and shock, and protection from ESD, EMI and electrical surge.

PIES106G-2GS-4P industrial grade POE switches can be widely used in Intelligent Transportation System, Electric Power, assembly automation, subway PIS, electric power SCADA, sewage treatment, Security Surveillance, rail transportation, military and other industries. It is a low power consumption Industrial Network Switch.

PIES106G-2GS-4P PoE switches support IEEE802.3af(15.4W),802.3at PoE+(30W), save installation and maintenance costs by reducing the need for external power supply, additional wires, power outlet.

Feature

▪ Support 4-port Gigabit PoE + 2-port Gigabit SFP;

▪ Support IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3z /ab,IEEE802.1Q, IEEE802.1p,IEEE802.1d/w;

▪ PoE Power Management, PoE Watchdog based on data stream detection;

▪ Compatible with both IEEE802.3at(30W) and IEEE802.3af(15.4w);

▪ Support STP(802.1D), RSTP(802.1w), MSTP(802.1s), ERPS;

▪ Support SNMP v1/v2/v3;

▪ Support IGMP Snooping, Static multicast filtering and MLD Snooping;

▪ Support 802.1x port and AAA Certification, Enhance network security;

▪ Support WEB, Telnet, CLI,SSH management;

▪ IP40 protection, rugged high-strength metal case, DIN35 Rail mounting;

▪ Support Redundant power supply access, support anti-reverse connection;

▪ Support Port lightning protection, Surge: General Mode 6KV, Differential Mode2KV,ESD: 15KV;

▪ Support EMC EN55032 standard;

▪ Industrial grade 4 design, -40-75°C working temperature;

▪ Support dual power supply DC12-55V;

▪ Support DIN-Rail or wall Installation;

▪ Warranty:5years
