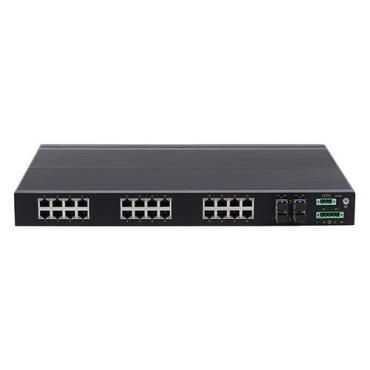

IES1028-4GS is a rugged industrial grade, Rack-mount, layer2, Managed Ethernet switch which supports 24-port 10/100M Base-T(X) + 4-port Gigabit SFP. It provided some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.

UPCOM IES1028-4GS adopts standard Industrial design, IP40 protection, aluminum alloy shell, support 1U, 19-inch Rack-mount installation, fanless design, EMC level 4 protection, dual power AC/DC220V, can satisfied the requirement of various industrial applications such as Intelligent Transportation System, Security Surveillance, Industrial Automation, Smart Grid, Rail Transportation Industry, Safely City, and New Energy applications.

Feature

▪ Support 24-port 10/100M RJ45 + 4-port Gigabit SFP;

▪ Support static multicast filtering, IGMP Snooping;

▪ Support MW-Ring redundancy technique (failure recovery time <20ms);

▪ Support STP/RSTP/MSTP;

▪ Support managed function such as VLAN, QoS, Trunking, and port mirroring;

▪ Support CLI, WEB, Telnet, SNMP management;

▪ Support firmware upgrade online;

▪ Support relay alarm output;

▪ Support indicator status display;

▪ Support IP40 protection, aluminum alloy shell, fanless design;

▪ Support Broadcast storm suppression;

▪ Support dual AC/DC 220V power supply;

▪ Support FC/ST/SC Fiber connector Optional;

▪ Power supply input support anti-reverse protection and non-polarity;

▪ Support over voltage, over current, EMC protection;

▪ Support wide operating temperature range from -40~75°C;

▪ 1U, 19-inch Rack-mount Installation;

▪ Warranty:5years
