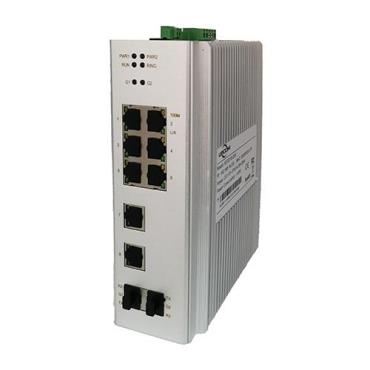

UPCOM IES3010-2GS is a rugged industrial grade, Din-Rail, layer2, Managed Ethernet switch which supports 8-port 10/100M RJ45 +2 Gigabit SFP ports. It provided some kinds of advanced network managed function, such as: MW-Ring redundancy technology (failure recovery time<20ms), VLAN, multicast, Quality of Service, Speed control, port mirroring, fault alarm and firmware remote update, also support CLI, WEB, Telnet, SNMP management, provide a user-friendly web console interface for easy configuration.

IES3010-2GS adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, EMC level 4 protection, dual power DC12-48V or single AC/DC220V optional, can satisfied the requirement of various industrial applications such as Industrial automation, smart grid, rail transportation industry, safely city, and new energy applications.

Feature

▪ Support 8-port 10/100M RJ45 +2 Gigabit SFP ports;

▪ Support static multicast filtering, IGMP Snooping;

▪ Support MW-Ring redundancy technique (failure recovery time <20ms);

▪ Support STP/RSTP/MSTP;

▪ Support managed function such as VLAN, QoS, Trunking, and port mirroring;

▪ Support CLI, WEB, Telnet, SNMP management;

▪ Support RMON and private MIB table;

▪ Support firmware upgrade online;

▪ Support relay alarm output;

▪ Support indicator status display;

▪ Support IP40 protection, aluminum alloy shell, fanless design;

▪ Support Broadcast storm suppression;

▪ Support dual DC12-48V or single AC/DC 220V power supply;

▪ Power supply input support anti-reverse protection and non-polarity;

▪ Support over Voltage, over current, EMC protection;

▪ Support -40~75°C wide operating temperature range;

▪ DIN-Rail or wall Installation;

▪ Warranty:5years
