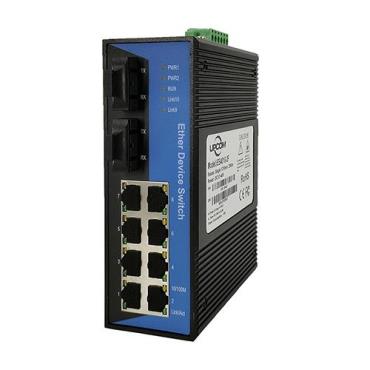

UPCOM IES4010-2F is a rugged industrial grade, Din-Rail, layer2, Unmanaged Ethernet switch which supports 8-port 10/100M Base-T(X) +2-port 100Base-FX. Plug and play, easy to install, no configuration is required, can be operated at wide temperatures range from -40 to 75°C. two independent power circuits ensure the normal operation of the device when one power supply is faulty.

IES4010-2F adopts standard Industrial design, IP40 protection, aluminum alloy shell, support Din-rail or wall installation, fanless design, support EMC level 4 protection, dual power DC12-48V or single AC/DC220V optional, can meet the requirement of various Industrial automation, Data Center Network, Intelligent Transportation System, Electric Power Industry, and new energy, etc.

Feature

▪ Support 8-port 10/100M Base-T(X) + 2-port 100Base-FX;

▪ Plug-and-play, no configuration is required;

▪ Support relay alarm output;

▪ Support indicator status display;

▪ Support IP40 protection, aluminum alloy shell, fanless design;

▪ Support Broadcast storm suppression;

▪ Support dual DC12-48V or single AC/DC 220V power supply;

▪ Power supply input support anti-reverse protection and non-polarity;

▪ Support over voltage, over current, EMC protection;

▪ Support -40~75°C wide operating temperature range;

▪ DIN-Rail or wall Installation;

▪ Warranty:5years
