* 7 inch touch Capacitive touch screen,800*600 resolution
* 10/100M adjustable,RJ45
* Customized: ONVIF,ACTi,DA HUA(IPC-HFW2100P),HIKVISION (DS-2CD864-E13),SAMSUNG,(SNZ-5200),TIANDY( TD-NC9200S2),Kada(IPC120L),HONEYWELL(HICC-2300T),AIPU,etc
* 1 channel BNC Input & 1 channel Output,support PAL/NTSC format
* Video PEAK lever,SYNC level, COLOR BURST measurement
* Output temporary 12V power for camera, the current is near 1A.
* test the pickup and other audio equipments on the front-end
* Support morethan 30 protocols ,such as
* PELCO-D/P,Samsung,Panasonic,Lilin,Yaan,etc.
* BaudRate:600-115200bps.
* Support RS232/RS485
* Output one channel PAL/NTSC color bar video signal for testing monitor or video cable
* Test UTP cable connection status and display in the screen. Read the number of the test box
* Captures and analyzes the command data from controlling device
* Snapshot, Video record, views the storage file in the SD card.
* IP address scan, Linkmonitor, PING test. Scan the ID of the PTZ camera quickly

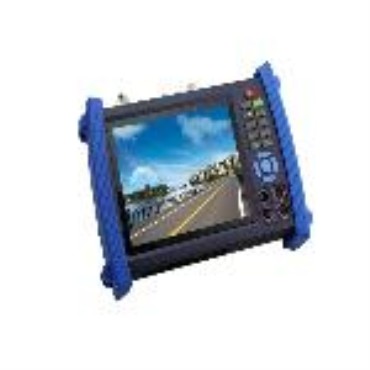

IPC CCTV Security tester, test HD network cameras, ONVIF HD IP Cameras, display high resolution image, screenshot, video record storage and playback etc, and support analog camera and PTZ control, Built in network testing tools. (IP address search, PING etc), quickly check the IP camera problem, Cable scan, TDR Tester, easy to check the network cable, BNC Cable problem.Optical power meter, Visual fault detector function, effective to solve the optical fiber transmission problem.
