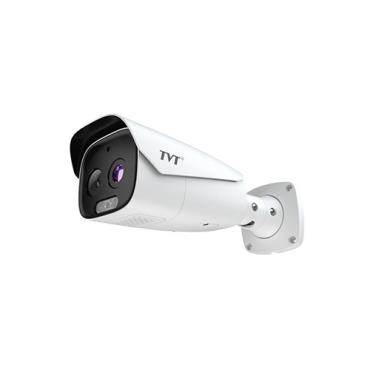

TVT TD-5433E1(FT/PE/VT) Thermal lens : 12.3mm
TVT TD-5433E1(FT/PE/VT) Thermal lens : 12.3mm
TVT Digital Technology co.,LTD(TVT Digital)
Region: China
Update: 2021/08/17
INQUIRY
Key Specifications
• Thermal: • 384 × 288 uncooled detector • 17um,NETD: <35mK(@25°C, F#=1.0) • 12.3mm thermal imaging lens • Temperature accuracy:±0.5°C@(30°C~42°C); ±0.3°C@(30°C~42°C, with blackbody) • ACB , DPC, , 3D DNR, DDE • Multi-palette: white, black, pseudo-color • Temperature exception alarm • Visible Light: • 5MP ( 2592 × 1944 ) @30 fps • 1/2.7" BSI + NIR progressive CMOS image • Min. Illumination: Color :0.0125 lux @F2.0; AGC ON W/B:0.008 lux @F2.0; AGC ON • 8mm visible light lens • 3D DNR, true WDR(120dB), HLC, BLC • Built-in white light and loudspeaker
