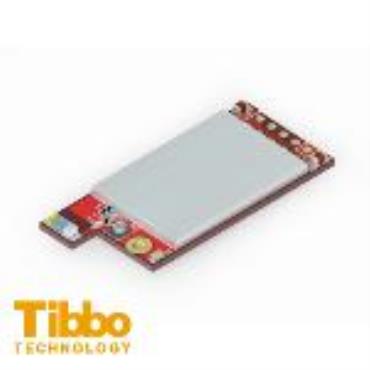

The GA1000 Wi-Fi add-on module further expands the scope of potential applications for Tibbo BASIC-programmable modules by adding 802.11b/g communications capability to the already powerful hardware mix. The GA1000 can be used with all T1000-based devices the EM1000, EM1202, and EM1206.

The module utilizes SPI interace and only requires five I/O line to control. Flexible mapping allows your application to use any five available I/O pins.

Please note that the GA1000 is a slave device and cannot be used on its own. The GA1000 will only work together a BASIC-programmable Tibbo module.

Specifications:

Superior upgrade to the now obsolete WA1000 module.

Implements 802.11b/g Wi-Fi standard.

Compatible with all T1000-based modules (EM1000, EM1202, EM1206).

Requires only five I/O lines to control, and any five lines can be used.

Chip antenna onboard, coaxial connector for external antenna.

Red status LED for scan/link indication.

Max. power: 280mA (max) @ 3.3V.

Dimensions: 42.0x19.0x6.7mm.

Upward-compatible with the now-obsolete WA1000 device.
