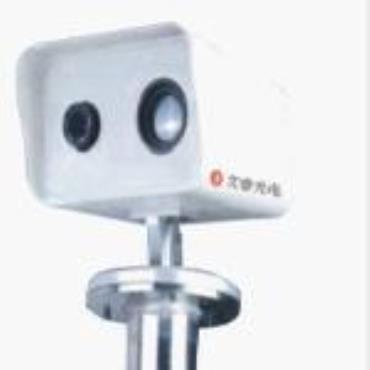

SZ513-B is an accurate, non-contact online IR body temperature checking system that allows the examiner quiclky inspect and capture abnormal human body temperature in the flowing crowds. As high performance infrared cameras, it is an excellent tool to control and decrease the spreading of disease with precursor of fever, like H1N1, SARS in airports, railway stations, subway station etc.

Imaging Performance

Detector 320×240 Uncooled FPA

Spectral Range 8μm～14μm

NETD ≤0.05℃ @30℃

Bad Pixels < 1%

Frame Frequency 50Hz

FOV 20.4°×15.4 °

Non-uniformity Calibration Auto/Manual

Imaging Fusion PIP

Interface

Video Output PAL/NTSC

Digital Output LVDS, Ethernet etc

Environment Specification

Temperature Range 0℃ to +60℃

Storage Temperature -25℃ to +60℃

Temperature Accuracy ≤0.5℃

Temperature Stability ≤0.3℃

Power Supply

Power Supply 110/220 V AC adapter

Power Requirements 16V

Physical Characteristics

Dimension 430mmx240mmx40mm

Weight 2kg
