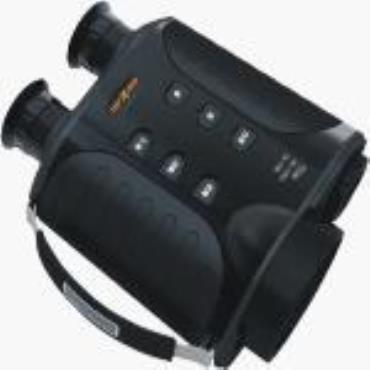

IRT307?is a new innovation in binocular portable IR thermal imager. Rugged, durable, light-weight and low-power consumption, together with binocular OLED lens, it is your best choice for day & night security surveillance, research and rescue, law enforcement etc. Waterproof, sealed design, shock/ vibration and salt proof guarantee working well in any harsh conditions.

Imager performance

Detector Materials Uncooled FPA

Spectral Range 8μm～14μm

Pixel Size 320 x 240

NETD ≤45mk

FOV 6.9°x5.2°

Image Presentation

Image Frequency 25Hz/30Hz

Brightness/contrast Auto & manual control

Polarity B&W, B&W inverse

Electronic Zoom X2

Cursor User-defined

Interfaces

Video Output PAL/NTSC

Command and Control RS422/RS232/RS458/Ethernet

Environmental

Operating Temperature -40℃ to +65℃

Storage Temperature -50℃ to +70℃

Physical Characteristics

Weight ≤1.9kg
